Sumicom E350F Industrial PC
Features
- Passive cooling design with heat sink
- Intel® Alder Lake S Celeron Low Power Processors (LGA1700)
- Intel Q670E Chipset
- 1 × 2.5Gb Ethernet port
- 6 × USB 3.2 ports
- 2 × DisplayPort
- 2 × M.2 M-Key 2280 slots for PCIe SSDs
- Power Input: 12V DC, 84W
- Optional 13V~48V DC, 120W
- Dimension 117mm (W) × 148mm (D) × 52mm (H)
Specifications
Processor
Supports Intel® Alder Lake S Celeron low power processors up to 35W TDP (LGA1700) 1
- Celeron G6900/G6900E/G6900TE
Memory
Support 1 DDR5-4800 non-ECC SODIMM, total memory size up to 32GB
Chipset
Intel Q670E
Display
Integrated Intel UHD graphics 710 in processor
2 × DisplayPort outputs [^2]
Audio
Realtek ALC897 high definition audio CODEC
LAN
1 × Built-in Intel i226-IT 2.5Gbps Ethernet Controller
USB
6 × USB 3.2 ports (backward compatible with USB 2.0)
BIOS & Hardware Monitor
UEFI BIOS
CPU temperature, cooling fan speed and system voltages
Heat Dissipation
Passive cooling design with heat sink 3
Power Supply
12 V DC via barrel jack (7 A / 84 W) 4
Expansion
- 2 × M.2 M-Key 2280 slots for PCIe SSDs (2 PCIe 3.0 x4)
IO Ports, Switch and Jumpers

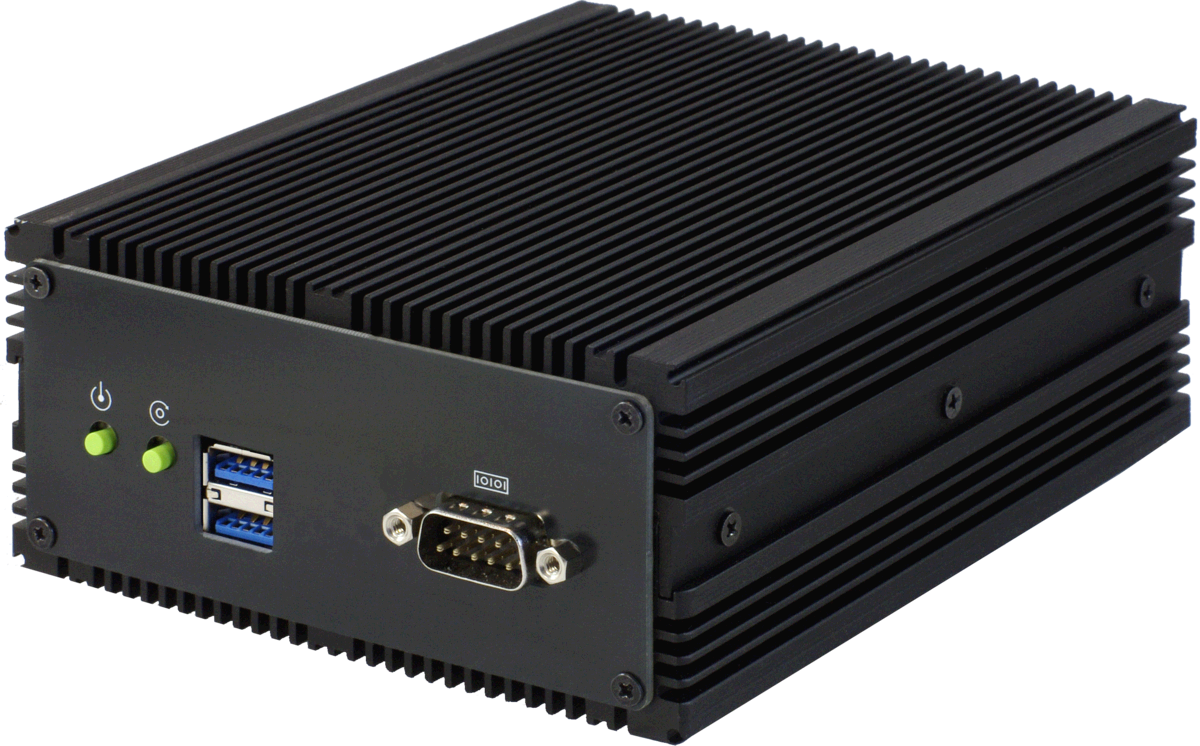

Front Panel:
- 2 × USB 3.2 ports (compatible with USB 2.0 devices)
- 1 × Headphone out (3.5 mm)
- 1 × RS-232 A port
- Power on/off button
- Reset button
- Power LED
- Optional 1 × RS-232 B port

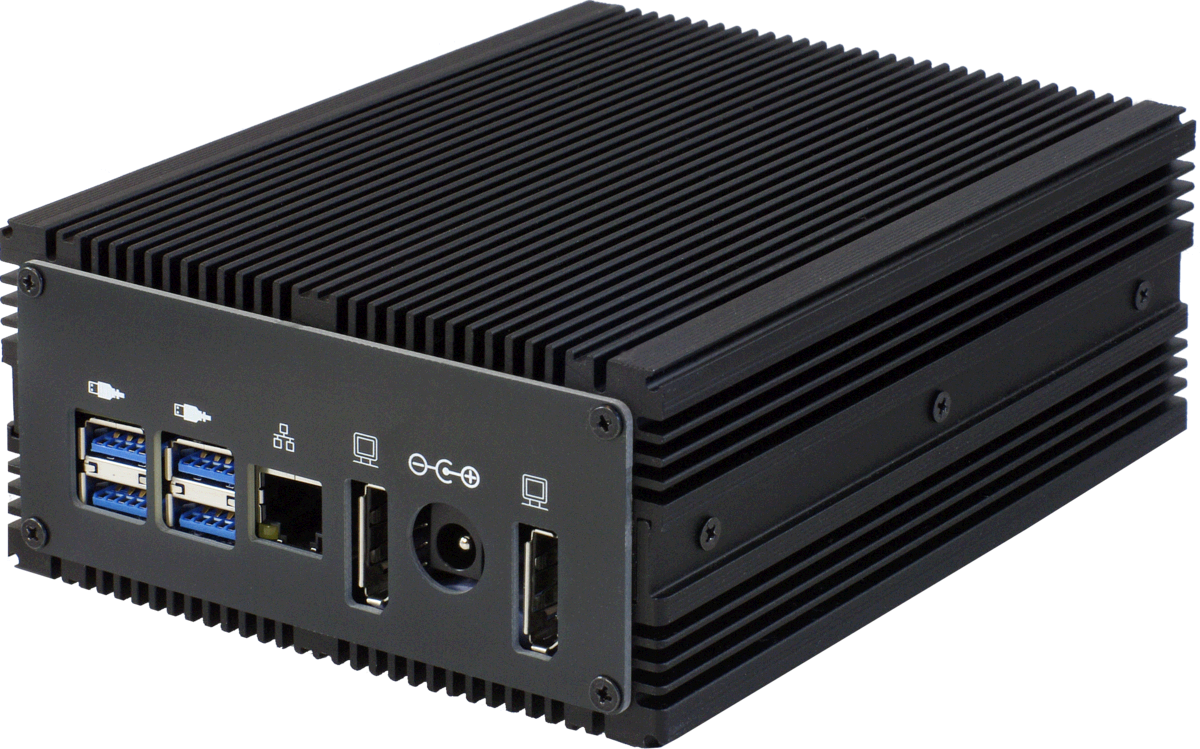

Rear Panel:
- 2 × DisplayPort
- 1 × RJ45 2.5Gb Ethernet
- 4 × USB 3.2 ports
- 1 × Barrel type DC power jack, support 12V power input
- Optional add-on module supports 13 ~ 48V power input
- Optional 1 × Audio Line Out (3.5mm)
Dimension
Width 117mm × Depth 148mm × Height 52mm
Accessories
- User's guide
- Power cord
- Screw pack
