Sumicom E300CXG3 Industrial PC
Features
- Passive cooling design with heat sink
- Intel® Alder Lake S Pentium and Celeron Low Power Processors (LGA1700)
- Intel Q670E Chipset
- 4 × 2.5Gb Ethernet ports
- 8 × USB 3.2 ports
- 4 × DisplayPort
- 5 × M.2 M-key 2280 slots
- 1 × M.2 M-key 2230 slot
- 4G / 5G / WWAN module expansion slot
- Wi-Fi / Bluetooth module expansion slot
- Power Input: 12V DC, 84W
- Optional 13V~48V DC, 120W
- Dimension 160mm (W) × 250mm (D) × 58mm (H)
Specifications
Processor
Supports Intel® Alder Lake S Pentium and Celeron low power processors up to 35W TDP (LGA1700) 1
- Celeron G6900/G6900E/G6900TE
- Pentium G7400/G7400E/G7400TE
Memory
Support 1 DDR5-4800 non-ECC SODIMM, total memory size up to 32GB
Chipset
Intel Q670E
Display
Integrated Intel UHD graphics 710 in processor
4 × DisplayPort outputs
Audio
Realtek ALC897 high definition audio CODEC
LAN
4 × Built-in Intel i226-IT 2.5Gbps Ethernet Controller
USB
8 × USB 3.2 ports (backward compatible with USB 2.0)
BIOS & Hardware Monitor
UEFI BIOS
CPU temperature, cooling fan speed and system voltages
Heat Dissipation
Passive cooling design with heat sink 2
Power Supply
12 V DC via barrel jack (7 A / 84 W) 3
Expansion
- 5 × M.2 M-Key 2280 slots for PCIe SSDs (3 PCIe 4.0 x4, 2 PCIe 3.0 x4)
- 1 × M.2 M-key 2230 slot (PCIe 4.0 x2)
- 1 × M.2 B-key 3045 slot for 5G/4G/LTE modules (USB 3.2)
- 1 × M.2 E-key 2230 slot for Wi-Fi/Bluetooth Modules (PCIe 4.0)
- 1 × parallel port header
IO Ports, Switch and Jumpers

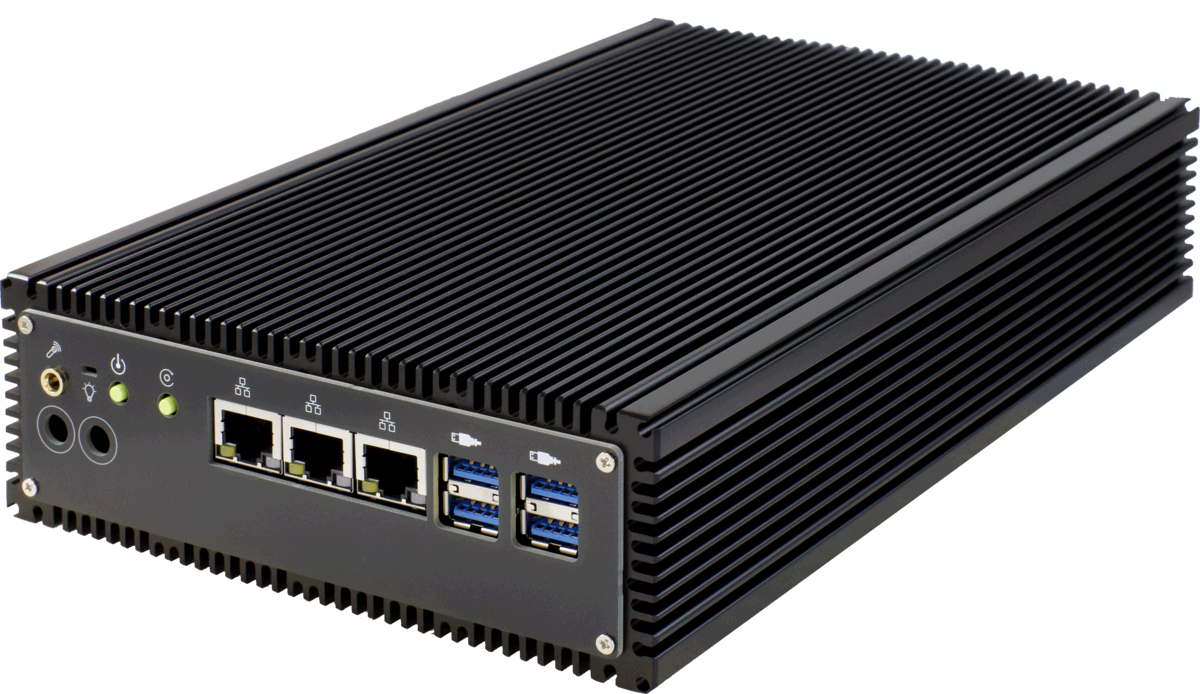

Front Panel:
- 4 × USB 3.2 ports (compatible with USB 2.0 devices)
- 1 × Mic-in (3.5 mm)
- 3 × RJ45 2.5Gb Ethernet
- Power on/off button
- Reset button
- Power LED
- 2 × Antenna holes
- Optional 1 × Headphone out (3.5 mm)
- Optional 1 × Parallel Port
- Optional 1 × RS-232 B port

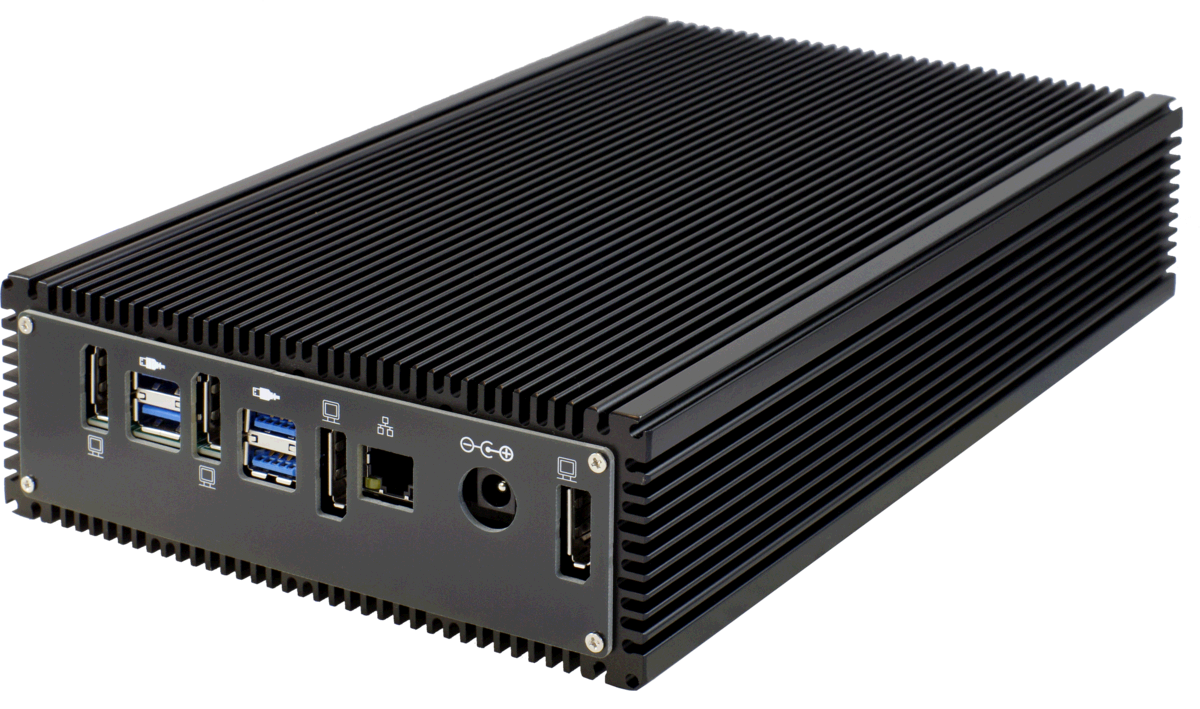

Rear Panel:
- 4 × DisplayPort
- 1 × RJ45 2.5Gb Ethernet
- 4 × USB 3.2 ports
- 1 × Barrel type DC power jack, support 12V power input
- Optional terminal block power jack, support 13 ~ 48V power input
- Optional remote power switch socket
- Optional 1 × Audio Line Out (3.5mm)
- Optional 1 × RS-232 A port
Dimension
Width 160mm × Depth 250mm × Height 58mm 4
Accessories
- User's guide
- Power cord
- Screw pack
- Higher TDP processors are supported on E300XG3 and E300XFG3 models.↩
- Active cooling design with dual centrifugal fans and heatsink on E300XG3↩
- Optional terminal-block input module supports 13–48 V DC (120 W max)↩
- For applications requiring a more compact footprint, please consider E300XG3 or E300XFG3.↩
