Sumicom E300XEG3 Industrial PC

Specifications

Processor

Supports Intel® Alder Lake S/Raptor Lake S (LGA1700) TDP 35W and 46W Processors ¹

Memory

Support 1 DDR5-4800 non-ECC SODIMM, total memory size up to 32GB

Chipset

Intel Q670E

Display

Integrated Intel UHD graphics 710, 730 or 770 in processor

4 × DisplayPort outputs

Audio

Realtek ALC897 high definition audio CODEC

LAN

4 × Built-in Intel i226-IT 2.5Gbps Ethernet Controller

USB

8 × USB 3.2 ports (backward compatible with USB 2.0)

BIOS & Hardware Monitor

UEFI BIOS

CPU temperature, cooling fan speed and system voltages

Heat Dissipation

Active cooling design with dual centrifugal fans and heatsink ²

Power Supply

12 V DC via barrel jack (7 A / 84 W) ³

Expansion

• 1 × PCIe 3.0 x4 Half-Length Add-In-Card slot
• 5 × M.2 M-key 2280 slots (3 PCIe 4.0 x4, 2 PCIe 3.0 x4)
• 1 × M.2 M-key 2230 slot (1 PCIe 4.0 x2)
• 1 × M.2 B-key 3045 slot for 5G/4G/LTE modules (USB 3.2)
• 1 × M.2 E-key 2230 slot for Wi-Fi/Bluetooth Modules (PCIe 4.0)
• 1 × parallel port header

IO Ports, Switch and Jumpers

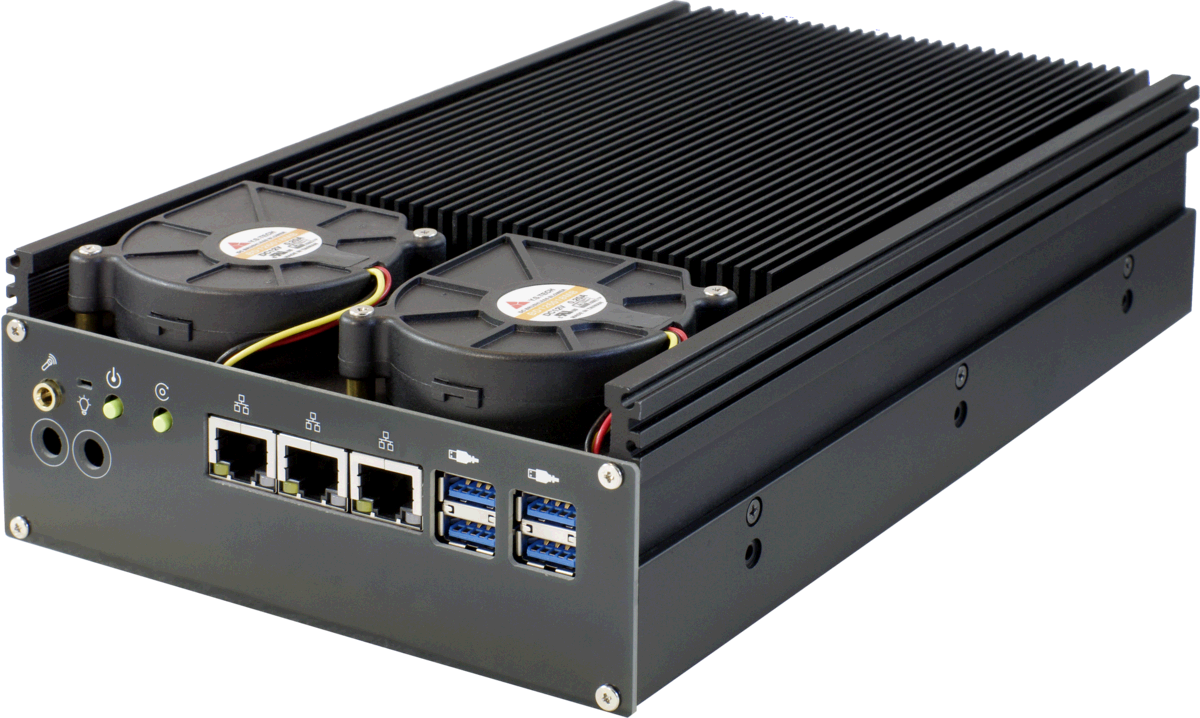

Front Panel:

• 4 × USB 3.2 ports (compatible with USB 2.0 devices)
• 1 × Mic-in (3.5 mm)
• 3 × RJ45 2.5Gb Ethernet
• Power on/off button
• Reset button
• Power LED
• 2 × Antenna holes
• Optional 1 × Headphone out (3.5 mm)
• Optional 1 × Parallel Port
• Optional 1 × RS-232 B port

Rear Panel:

• 4 × DisplayPort
• 1 × RJ45 2.5Gb Ethernet
• 4 × USB 3.2 ports
• 1 × Barrel type DC power jack, support 12V power input
  • Optional terminal block power jack, support 13 ~ 48V power input
• Optional remote power switch socket
• Optional 1 × Audio Line Out (3.5mm)
• Optional 1 × RS-232 A port

Dimension

Mid-height Size

Width 153mm × Depth 250mm × Height 64mm

Accessories

• User's guide
• Power cord
• Screw pack
