Sumicom E300X Industrial PC
Features
- Active cooling design with dual centrifugal fans
- Intel® Alder Lake S/Raptor Lake S LGA1700 Processors up to 46W TDP
- Intel Q670E Chipset
- 1 × 2.5Gb Ethernet port
- 8 × USB 3.2 ports
- 4 × DisplayPort
- 5 × M.2 M-Key 2280 slots
- 4 × M.2 M-Key 2230 slots
- 4G / 5G / WWAN module expansion slot
- Wi-Fi / Bluetooth module expansion slot
- Power Input: 12V DC, 84W
- Optional 13V~48V DC, 120W
- Standard-height Size 153 × 250 × 48mm (W × D × H)
Specifications
Processor
Supports Intel® Alder Lake S/Raptor Lake S (LGA1700) TDP 35W and 46W Processors 1
Memory
Support 1 DDR5-4800 non-ECC SODIMM, total memory size up to 32GB
Chipset
Intel Q670E
Display
Integrated Intel UHD graphics 710, 730 or 770 in processor
4 × DisplayPort outputs
Audio
Realtek ALC897 high definition audio CODEC
LAN
1 × Built-in Intel i226-IT 2.5Gbps Ethernet Controller 2
USB
8 × USB 3.2 ports (backward compatible with USB 2.0)
BIOS & Hardware Monitor
UEFI BIOS
CPU temperature, cooling fan speed and system voltages
Heat Dissipation
Active cooling design with dual centrifugal fans and heatsink 3
Power Supply
12 V DC via barrel jack (7 A / 84 W) 4
Expansion
- 5 × M.2 M-key 2280 slots (3 PCIe 4.0 x4, 2 PCIe 3.0 x4)
- 4 × M.2 M-key 2230 slots (1 PCIe 4.0 x2, 3 PCIe 3.0 x1)
- 1 × M.2 B-key 3045 slot for 5G/4G/LTE modules (USB 3.2)
- 1 × M.2 E-key 2230 slot for Wi-Fi/Bluetooth Modules (PCIe 4.0)
- 1 × parallel port header
IO Ports, Switch and Jumpers
Front Panel:
- 4 × USB 3.2 ports (compatible with USB 2.0 devices)
- 1 × Mic-in (3.5 mm)
- 1 × Headphone out (3.5 mm)
- 1 × RS-232 B port
- Power on/off button
- Reset button
- Power LED
- 2 × Antenna holes
- Optional 1 × Parallel Port 5

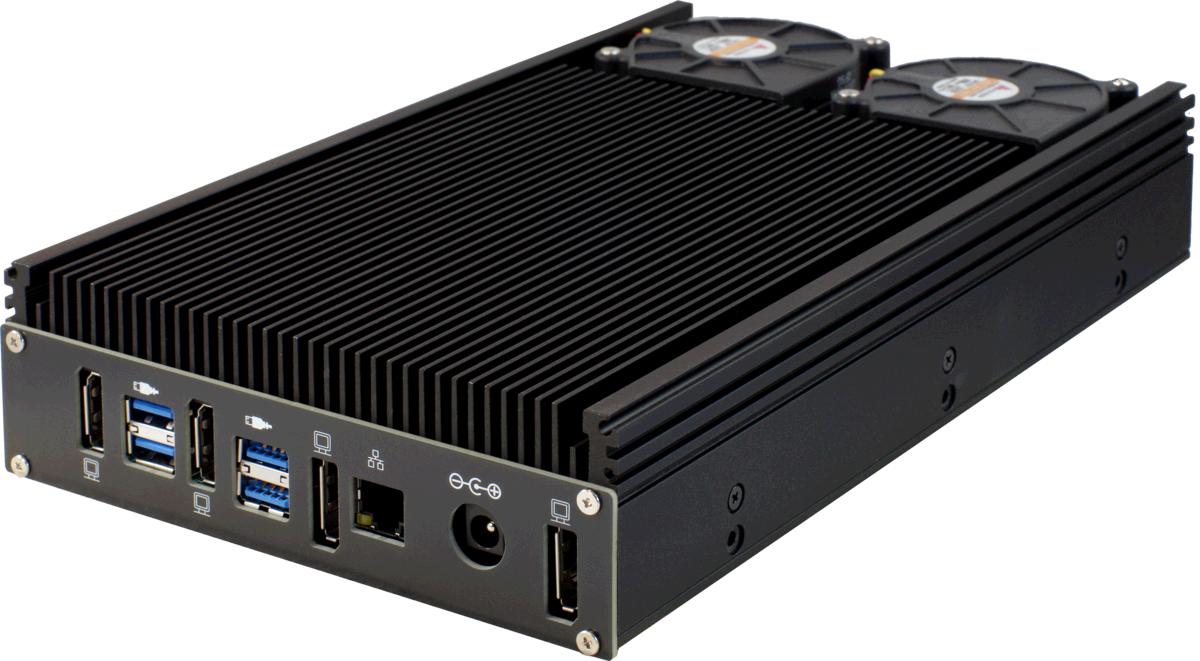

Rear Panel:
- 4 × DisplayPort
- 1 × RJ45 2.5Gb Ethernet
- 4 × USB 3.2 ports
- 1 × Barrel type DC power jack, support 12V power input
- Optional terminal block power jack, support 13 ~ 48V power input
- Optional remote power switch socket
- Optional 1 × Audio Line Out (3.5mm)
- Optional 1 × RS-232 A port 6
Dimension
Standard-height Size
Width 153mm × Depth 250mm × Height 48mm
Accessories
- User's guide
- Power cord
- Screw pack
- Support for 65W TDP processors are in progress.↩
- Additional 3 × RJ45 2.5Gb Ethernet ports are available on E300XG3↩
- Passive cooling design with heat sink is available on E300XF and E300CX↩
- Optional terminal-block input module supports 13–48 V DC (120 W max)↩
- Chassis height needs to grow to 55.3mm or higher to support the parallel port↩
- Chassis height needs to be Medium-height (64mm) or higher to support the RS-232 A port↩
