Sumicom E300G3 Industrial PC
Features
- Active cooling design with dual centrifugal fans
- Intel® Alder Lake S/Raptor Lake S LGA1700 Processors up to 46W TDP
- Intel Q670E Chipset
- 4 × 2.5Gb Ethernet ports
- 6 × USB 3.2 ports
- 2 × DisplayPort
- 4 × M.2 M-Key 2280 slots for PCIe SSDs
- Power Input: 12V DC, 84W
- Optional 13V~48V DC, 120W
- Standard-height Size 153 × 250 × 48mm (W × D × H)
Specifications
Processor
Supports Intel® Alder Lake S/Raptor Lake S (LGA1700) TDP 35W and 46W Processors 1
Memory
Support 1 DDR5-4800 non-ECC SODIMM, total memory size up to 32GB
Chipset
Intel Q670E
Display
Integrated Intel UHD graphics 710, 730 or 770 in processor
2 × DisplayPort outputs 2
Audio
Realtek ALC897 high definition audio CODEC
LAN
4 × Built-in Intel i226-IT 2.5Gbps Ethernet Controller
USB
6 × USB 3.2 ports (backward compatible with USB 2.0) 3
BIOS & Hardware Monitor
UEFI BIOS
CPU temperature, cooling fan speed and system voltages
Heat Dissipation
Active cooling design with dual centrifugal fans and heatsink 4
Power Supply
12 V DC via barrel jack (7 A / 84 W) 5
Expansion
- 4 × M.2 M-Key 2280 slots for PCIe SSDs (2 PCIe 4.0 x4, 2 PCIe 3.0 x4)
- 1 × Parallel port header
IO Ports, Switch and Jumpers

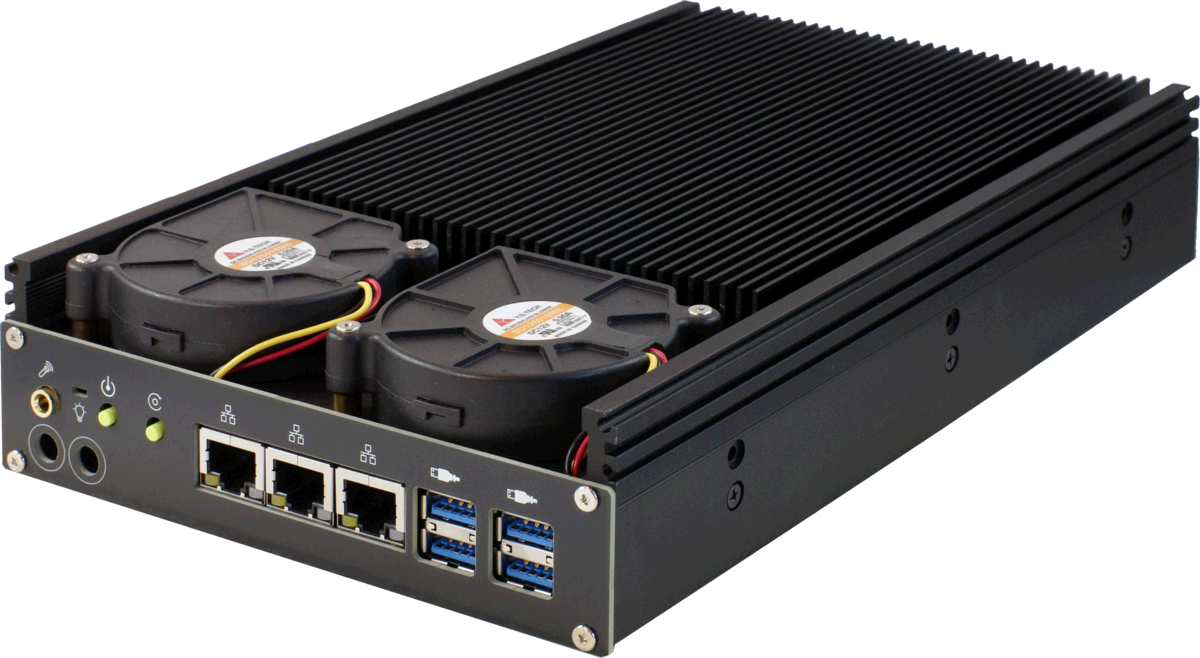

Front Panel:
- 4 × USB 3.2 ports (compatible with USB 2.0 devices)
- 1 × Mic-in (3.5 mm)
- 3 × RJ45 2.5Gb Ethernet
- Power on/off button
- Reset button
- Power LED
- 2 × Antenna holes
- Optional 1 × Headphone out (3.5 mm)
- Optional 1 × Parallel Port 6
- Optional 1 × RS-232 B port 6

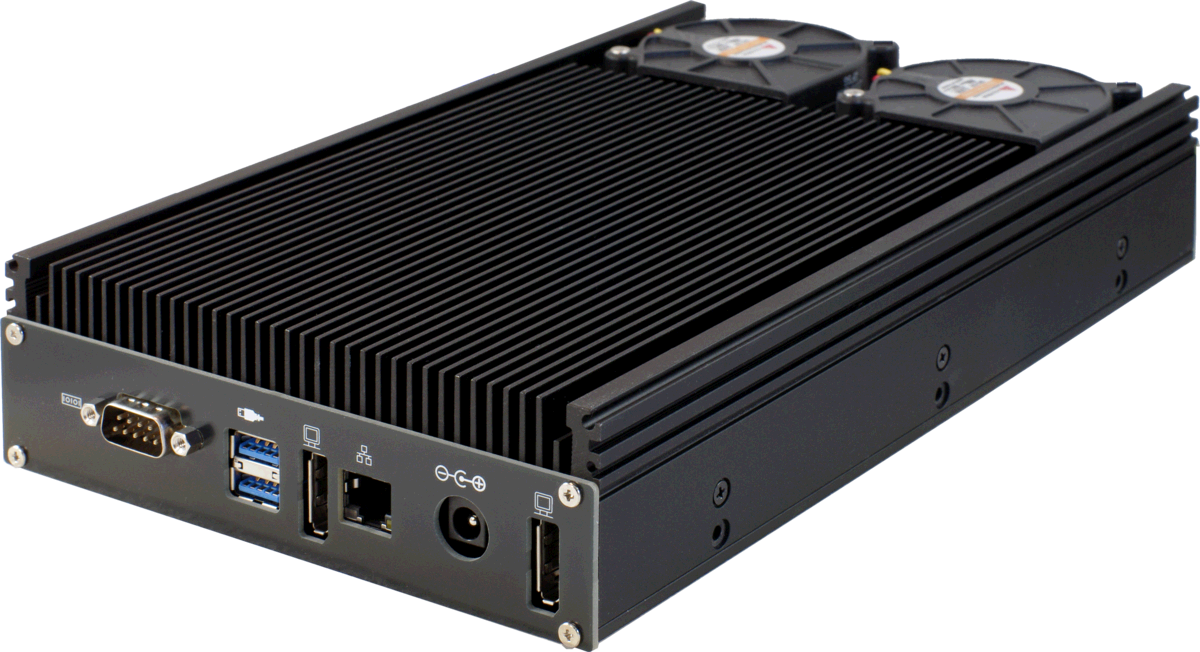

Rear Panel:
- 2 × DisplayPort
- 1 × RS-232 A port
- 1 × RJ45 2.5Gb Ethernet
- 2 × USB 3.2 ports
- 1 × Barrel type DC power jack, support 12V power input
- Optional terminal block power jack, support 13 ~ 48V power input
- Optional 1 × Audio Line Out (3.5mm)
- Optional remote power switch socket
- Optional PS/2 keyboard ports
Dimension
Standard-height Size
Width 153mm × Depth 250mm × Height 48mm
Accessories
- User's guide
- Power cord
- Screw pack
- Support for 65W TDP processors are in progress.↩
- 4 × DisplayPort outputs is available on E300XG3↩
- 8 × USB 3.2 ports are available on E300XG3↩
- Passive cooling design with heat sink is available on E300FG3 and E300XFG3↩
- Optional terminal-block input module supports 13–48 V DC (120 W max)↩
- Chassis height needs to grow to 55.3mm or higher to support the parallel port and RS-232 B port↩
