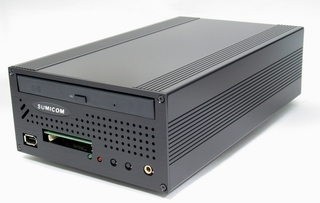

Sumicom S620

Applications

• Home Entertainment Center
• Gateway, Router, Transportable PC
• Personal Desktop, Office System
• Industrial, Control, Data Collection, Data Center
• Application Server, File Server, Game Server,...etc.

Specifications

Processor

• Intel P4/Celeron Northwood 2.0Ghz ~ 3.20Ghz (512KB L2 Cache)
• Intel P4/Celeron Prescott up to 3.0Ghz (1M L2 Cache)
• Support Hyper Threading Technology
• VRM 10.0 standard

Memory

• Support Dual-Channel DDR 400/333/266 DIMM
• Maximum 2 GB, with 512Mb technology

Core Logic

• Intel 865GV / ICH 5(North / South)
• FSB support up to 800Mhz

Video

• Intel Extreme Graphics 2
• Support up to 64MB DVMT video memory

Audio

• Software AC '97 Audio CODEC

LAN

• Built-in high speed Ethernet 100/10Mbps LAN controller

FireWire (Optional)

• Built-in OHCI 1394a 1.1 compliance
• Support up to 400Mb transfer rate

USB 2.0

• Integrated 4 independent UHCI controller supporting USB 1.1 ports
• Integrated 1 EHCI controller supporting USB 2.0 ports
• Dynamic connection support to USB 2.0 or USB 1.1 devices

IDE

• Dual Independent ATA-100/66/33 support
• Support up to 4 IDE devices on dual channel

Hardware Monitor

• System, processor temperature, voltage and fan speed monitor
• Auto Thermal FAN speed control

Power Management

• ACPI 1.0b compliance and OS direct power management
• Wake-on event: RTC/USB Keyboard/Modem/LAN/Keyboard/Mouse

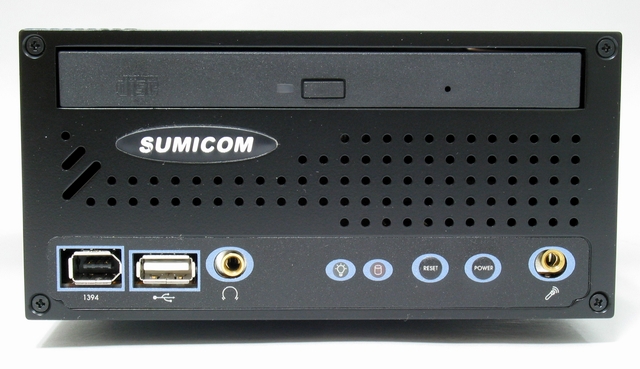

Front Panel

• 1 x IEEE 1394 Firewire port
• 1 x USB 2.0 / 1.1 Port
• 1 x MIC Port
• 1 x Ear Phone output Jack
• Power-on button
• Reset button
• Power-on and HDD LED

Back Panel

• 1 x RS232 COM port
• 1 x parallel printer port
• 1 x RJ45 10/100Mb Fast Ethernet
• 1 x Line-Out output Jack
• 2 x USB 2.0 / 1.1 Ports
• 1 x 15 pin VGA
• 1 x 19v DC Power Jack input

Dimension & Weight

• 14.8 x 25.4 x 7 cm
• 2.5KG (fully equipped)

AC/DC Adaptor

• Input 100~240V AC Universal
• Output 19V DC out

Storage Devices

• Support all Standard Slim CD-ROM/DVD-ROM, CD-RW, DVD-RW Combo
• Support all 3.5" standard IDE hard drive, ATA-100/66/33
• Top

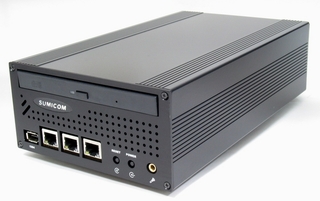

S620 Option Models

• Table 1 / Table 2 / Table 3

S620

• S620A
• PCMCIA
• S620D
• DVR
• S620F
• DVR-4
• S620E
• CF reader
• S620AD
• PCMCIA + DVR
• S620I
• SPDIF

Chipset

• Intel i865GV / ICH 5

System FSB

• 800/533/400 MHz

CPU

• Support Intel Pentium 4 / Celeron processor

Memory

• Support Dual-Channel mode, 2 DDR 400/333/266 DIMM up to 2GB

Video

• Integrated Intel Extreme Graphics 2, support 64MB DVMT

Audio

• Integrated AC '97, Realtek 650

LAN

• Intel Pro 10/100 Mb Fast Ethernet

1394-Firewire

• Agere FW323, high speed 1394, 400Mb data transfer rate

Dimension

• (W x D x H) 14.8 x 25.4 x 7 cm / 5.8" x 10" x 2.75"

Power

• DC 19v
