Sumicom S525C

Specifications

Processor

• Onboard Intel Pineview D525 dual core Atom processor

Memory

• Support 2 * DDR3 800MHz SODIMM, memory size up to 4GB

Core Logic

• Intel ICH8M

Video

• Intel Graphics Media Accelerator 3150

Audio

• Software high definition audio CODEC

LAN

• Built-in high speed Ethernet 10/100/1000 Mbps LAN controller
• Support WOL function

USB port

• Integrated 1 XHCI controller supporting USB 3.0 ports
• Integrated 2 EHCI controller supporting USB 2.0 ports
• Integrated 6 independent UHCI controller supporting USB 1.1 ports

SATA

• Support 2.5" hard disk drive or SSD
• Support AHCI function

Hardware Monitor

• Processor temperature; Voltages; CPU fan speed

Power Management

• ACPI 3.0 compliance and OS direct power management
• Wake-on event: RTC/USB Keyboard/Modem/LAN/Keyboard/Mouse

Front Panel

• 1 x RS232(COM) port
• 1 x USB 3.0 port
• 4 x USB 2.0 / 1.1 ports
• 1 x Microphone Jack
• 1 x Ear Phone Jack
• Power-on button
• Power/HDD LED

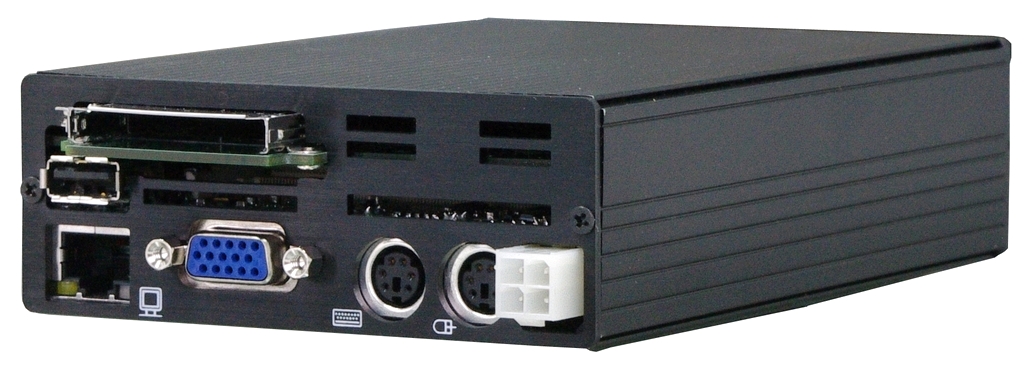

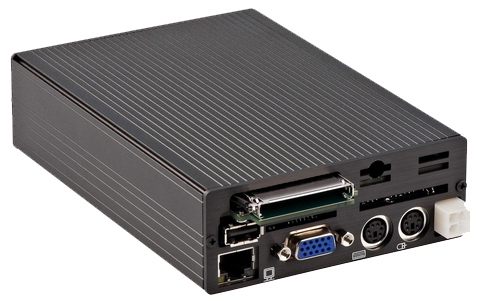

Back Panel

• 1 x VGA port
• 1 x RJ45 10/100/1000Mb Fast Ethernet
• 1 x Express card/34 slot
• 1 x USB 3.0 port
• 1 x USB 2.0 / 1.1 port
• 1 x PS/2 Keyboard port
• 1 x PS/2 Mouse port
• 1 x 10~26V DC power input port

Internal

• 1 x mini card slot
• (Supports mini PCIe & USB device)

Dimension & Weight

• Chassis only, extended connectors not included.
• 4"(W) x 5.79"(D) x 1.48"(H) (102 x 148 x 38 mm)
• 0.5KG (without memory and HDD)

Environmental

• Operating Temperature: -10 ℃ ~ 60 ℃Storage Temperature: -20 ℃ ~ 70 ℃

AC/DC Adapter

• N.A

Accessories

• CPU Cooler, Driver CD, User's guide, Car PC Power wire, Screw pack
