Sumicom S685G3F

사양

Processor

• Intel FCLGA1150 socket
• Tested 4th generation CPU: i7-4770TE, i3-4340TE, Pentium G3320TE
• and Celeron G1820TE

Memory

• Support DDR3 1333/1600Mhz non-ECC SODIMM * 2
• Total memory size up to 16GB

Core Logic

• Intel Q87(Lynx Point)

Video

• Integrated Intel HD graphics 4600 in processor

Audio

• Realtek ALC892 high definition audio CODEC

LAN

• One Intel i217LM 100/1000Mbps ethernet PHY
• Three Intel i210AT 100/1000Mbps Ethernet controllers
• Support WOL function

USB

• Integrated XHCI and EHCI controllers support six super speed USB 3.0 ports
• and compatible to USB2.0

SATA

• Supports SATA 6Gb/s and 3Gb/s specification
• Supports 2.5" SATA hard disk drive and solid state drive
• Supports SATA Slim DVD-ROM Combo, DVD-RW drive
• Supports RAID 0 and RAID 1 function

BIOS & Hardware Monitor

• Insyde UEFI BIOS
• CPU temperature, cooling fan speed, system voltage

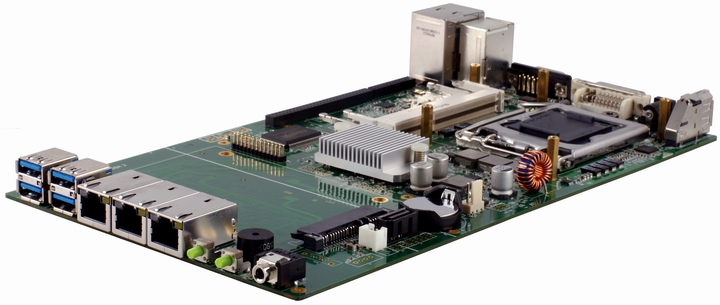

Front Panel

• 4 x USB 3.0 ports (compatible with USB 2.0/1.1 devices)
• 3 x RJ45 gigabit fast ethernet
• 1 x MIC-in phone jack
• Power on/off button
• Reset button
• Power and HDD LED

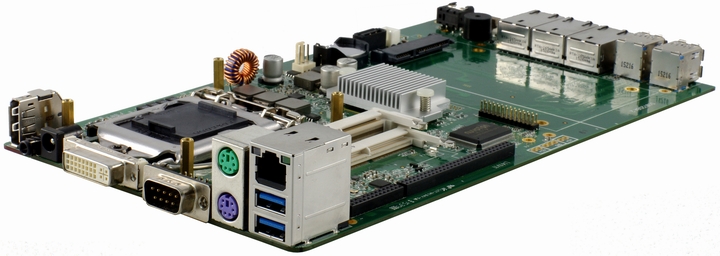

Back Panel

• 1 x DVI-I port 1 x DP port
• 1 x RS232 A port (RS232 B port is available)
• 1 x RJ45 gigabit fast ethernet
• 1 x Line-out jack
• 2 x USB 3.0 ports
• 2 x PS/2 ports for keyboard and mouse
• 1 x 12V DC power jack

Internal

• An optional mini PCIe daughter board supports one full size and one half size mini PCIe card

Dimension

• Wide 6.3" x Long 9.8" x High 2.3" (W160mm x L250mm x H58mm)

AC/DC Adapter

• Input universal AC 100~240V; Output DC 12V/84W

Accessories

• CPU Heatsink, Driver CD, User's guide, Power cord, Screw pack
