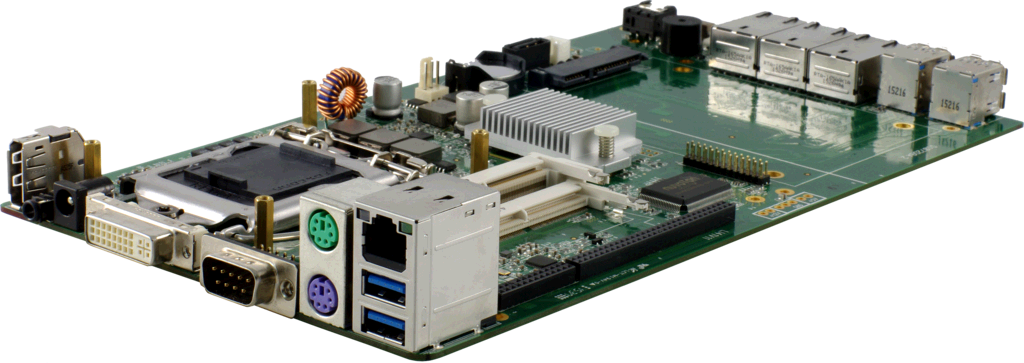

Sumicom S685FG3 Fanless Industrial PC

Specifications

Processor

Intel FCLGA1150 socket

Tested 4th generation CPU: i7-4770TE, i5-4590T, i3-4340TE, Pentium G3320TE and Celeron G1820TE

Memory

Support DDR3 1333/1600Mhz non-ECC SODIMM * 2

Total memory size up to 16GB

Core Logic

Intel Q87(Lynx Point)

Supported Windows Version

Including but not limited to:

• Window 7 32/64bit
• Windows 8/8.1 64bit
• Windows 10 64bit

Video

Integrated Intel HD graphics 4600 in processor

Audio

Realtek ALC892 high definition audio CODEC

LAN

One Intel i217LM 100/1000Mbps ethernet PHY

Three Intel i210AT 100/1000Mbps Ethernet controllers

Support WOL function

USB

Integrated XHCI and EHCI controllers support six super speed USB 3.0 ports and compatible to USB2.0

SATA

Supports SATA 6Gb/s and 3Gb/s specification

Supports 2.5" SATA hard disk drive and solid state drive

Supports SATA Slim DVD-ROM Combo, DVD-RW drive

Supports RAID 0 and RAID 1 function

BIOS & Hardware Monitor

Insyde UEFI BIOS

CPU temperature, cooling fan speed, system voltage

Switch and Jumpers

Front Panel:

• 4 x USB 3.0 ports (compatible with USB 2.0/1.1 devices)
• 3 x RJ45 gigabit fast ethernet
• 1 x MIC-in phone jack
• Power on/off button
• Reset button
• Power and HDD LED

Back Panel:

• 1 x DVI-I port
• 1 x DP port
• 1 x RS232 A port (RS232 B port is available)
• 1 x RJ45 gigabit fast ethernet
• 1 x Line-out jack
• 2 x USB 3.0 ports
• 2 x PS/2 ports for keyboard and mouse
• 1 x 12V DC power jack
• Optional remote power switch socket

Internal:

• 1 x parallel port header
• 2 x USB 2.0 port header
• Optional mini PCIe daughter board supports one full size and one half size mini PCIe card
• Optional 2nd SATA HDD/SDD connector

Dimension

Wide 6.3" x Long 9.8" x High 2.3" (W160mm x L250mm x H58mm)

AC/DC Adapter

Input universal AC 100~240V; Output DC 12V/84W

Accessories

• CPU Heatsink
• Driver CD
• User's guide
• Power cord
• Screw pack
