Sumicom S345B

Features

Processor: Intel Core2Duo P8600/P8400 and Celeron M 575/T3100 processor
Memory: Support 2 * DDR3 800/1066MHz SODIMM, memory size up to 8 GB
Core Logic: Intel GM45 / ICH9M (North/South)
Video: Intel Graphics Media Accelerator 4500MHD
Audio: Software high definition audio CODEC
LAN: Built-in high speed Ethernet 10/100/1000 Mbps LAN controller
Support WOL function
USB 2.0: Integrated 6 independent UHCI controller supporting USB 1.1 ports
Integrated 2 EHCI controller supporting USB 2.0 ports
Dynamic connection support USB 2.0 or USB 1.1 devices
SATA: Support 2.5" hard disk drive or SSD
Support AHCI function
Hardware Monitor: Processor temperature; Voltages; CPU fan speed
Power Management: ACPI 3.0b compliance and OS direct power management
Wake-on event: RTC/USB Keyboard/Modem/LAN/Keyboard/Mouse
IO ports and Switch: Front Panel:
1 x RS232(COM) port
3 x USB 2.0 / 1.1 ports
1 x Microphone Jack
1 x Ear Phone Jack
Power-on button
Power/HDD LED

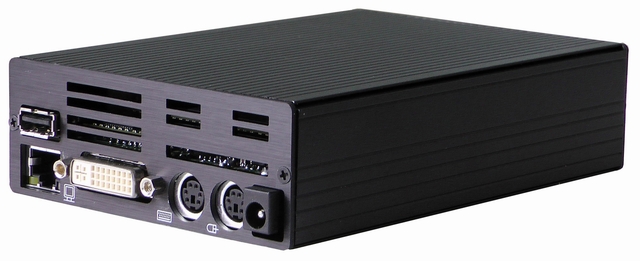

Back Panel: 1 x DVI-I port
1 x RJ45 10/100/1000Mb Fast Ethernet
1 x USB 2.0 / 1.1 port
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
1 x 10 ~ 26V DC power input port
Dimension & Weight: Chassis only, extended connectors not included.
4"(W) x 5.79"(D) x 1.48"(H) (102 x 148 x 38 mm)
0.36KG (barebone only)
AC/DC Adapter: Universal AC 100~240V input, DC 12V/60W output
Accessories: CPU Cooler, DVI to VGA converter, Driver CD, User's guide,
Power cord, Screw pack
