Sumicom S385

Sumicom S385 Produit ancienne génération 1
Sumicom S385 Produit ancienne génération 2

Fonctionnalités

  • Onboard Intel 4th generation Haswell-ULT processor
  • CPU integrated 8 series chipset
  • Support SODIMM DDR3/L 1333/1600Mhz 8GB * 2
  • On-board one gigabit LAN and two USB 3.0 ports
  • On-board DVI-D and Display Port
  • Support 6Gb/s SATA 2.5" hard disk (thickness equal or under 12.5 mm)
  • Power in: DC 12V/60W
  • Dimension 4"(W) x 5.79"(D) x 1.48"(H) (W102 mm x D148 mm x H38 mm)
Contactez-nous

Spécifications

Processor
  • Onboard Intel 4th generation Celeron 2980U 1.6GHz or i3-4010U 1.7GHz processor, 8 series chipset integrated in processor
Memory
  • Support DDR3/L 1333/1600Mhz non-ECC SODIMM * 2
  • Total memory size up to 16GB
Graphics
  • Integrated Intel HD graphics in Celeron 2980U processor and Intel HD graphics 4400 in i3-4010U processor
Audio
  • Realtek ALC892 high definition audio CODEC
LAN
  • Built-in Intel i218LM 100/1000Mbps Ethernet PHY
  • Support WOL function
USB
  • Integrated XHCI and EHCI controllers support two super speed USB 3.0 ports
  • and compatible to USB2.0
SATA
  • Supports SATA 6Gb/s and 3Gb/s specification
  • Supports 2.5" SATA hard disk drive and solid state drive
BIOS & Hardware Monitor
  • Insyde UEFI BIOS
  • CPU temperature, cooling fan speed, system voltage

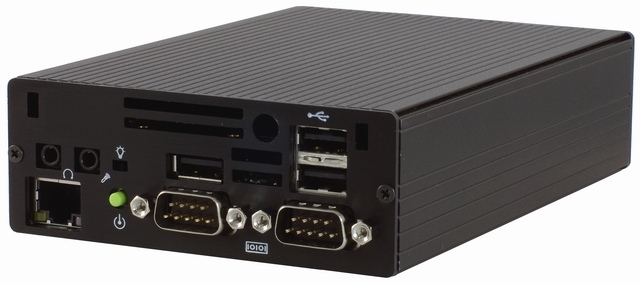

Front Panel
  • 3 x USB 2.0 ports
  • 1 x RJ45 100/1000Mb Fast Ethernet
  • 2 x RS232 ports
  • 1 x MIC-in phone jack
  • 1 x Ear Phone jack
  • Power on/off button
  • Power and HDD LED

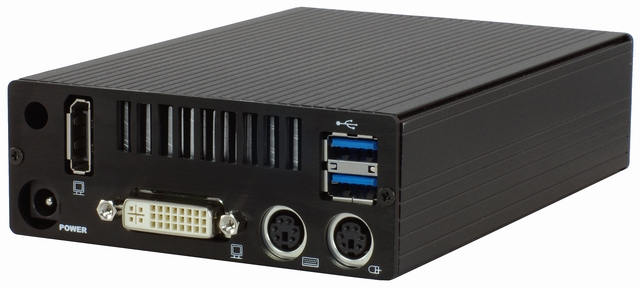

Back Panel
  • 1 x DVI-D port 1 x DP port
  • 2 x USB 3.0 ports
  • 2 x PS/2 ports for keyboard and mouse
  • 1 x 12V DC power jack
Dimension
  • Wide 4" x Depth 5.79" x High 1.38" (W102mm x D148mm x H38mm)
AC/DC Adapter
  • Input universal AC 100~240V; Output DC 12V/60W
Accessories
  • Driver Disc, User's guide, Power cord, Screw pack
